Cards

Dell™ Dimension™ 2400 Series

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in your Owner's Manual or Product Information Guide.
  1. Shut down the computer through the Start menu.

  2. Ensure that your computer and attached devices are turned off. If your computer and attached devices did not automatically turn off when you shut down your computer, turn them off now.

NOTICE: To disconnect a network cable, first unplug the cable from your computer and then unplug it from the network wall jack.
  1. Disconnect any telephone or telecommunication lines from the computer.

  2. Disconnect your computer and all attached devices from their electrical outlets, and then press the power button to ground the system board.

CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before opening the cover.
  1. Remove the computer cover.

  2. Lay the computer on its side so that the system board is on the bottom of the inside of the computer.

  3. Unscrew and remove the filler bracket for the card slot you want to use.

CAUTION: Some network adapters automatically start the computer when they are connected to a network. To guard against electrical shock, be sure to unplug your computer from its electrical outlet before installing any cards.

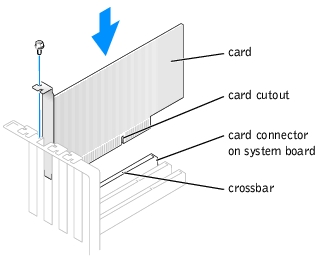

  1. Align the cutout on the bottom of the card with the crossbar in the system board connector. Gently rock the card into the connector until it is fully seated.

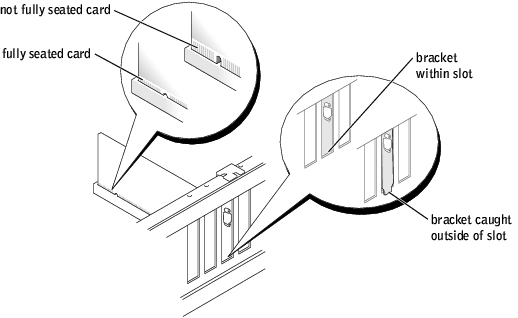

Ensure that the card is fully seated and that its bracket is within the card slot.

  1. Secure the filler bracket onto the end of the card with the screw you removed in step 7.

  2. Connect any cables that should be attached to the card.

See the documentation for the card for information about the card's cable connections.

NOTICE: Do not route card cables over or behind the cards. Cables routed over the cards can cause damage to the equipment.
  1. Replace the computer cover.

NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the computer.
  1. Connect your computer and devices to electrical outlets, and turn them on.

  2. Install any drivers required for the card as described in the card documentation.
